Step 1.
address point bearing line should touch street line,
in order to use spatial join by 2 line intersect.

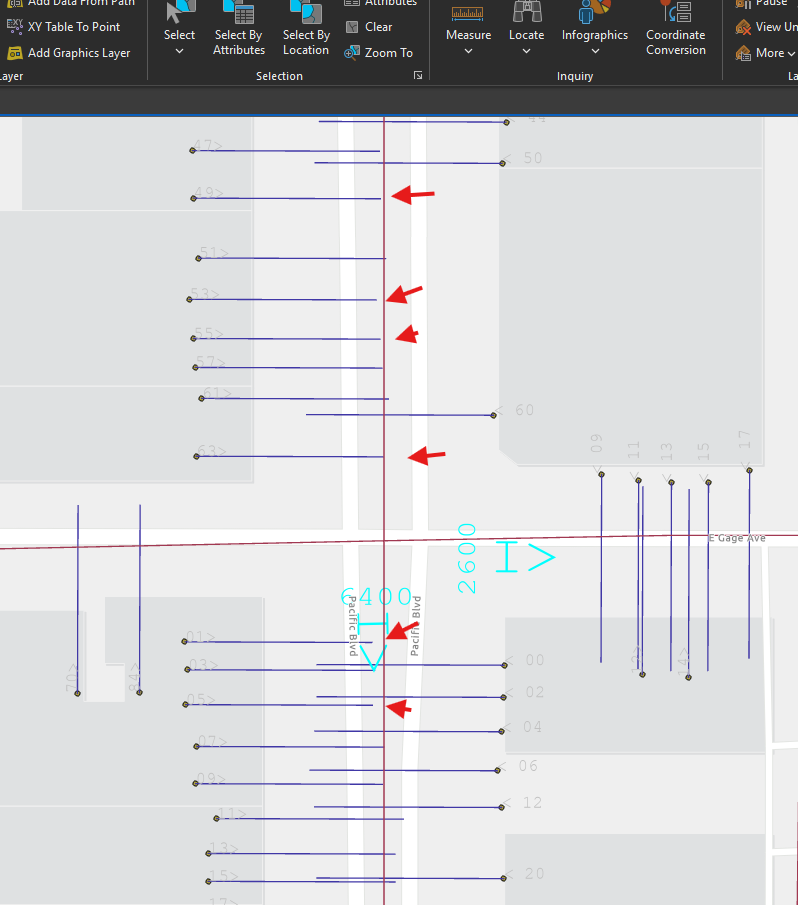

but 5% of them are too short (red arrow) need fix.
Step 2.

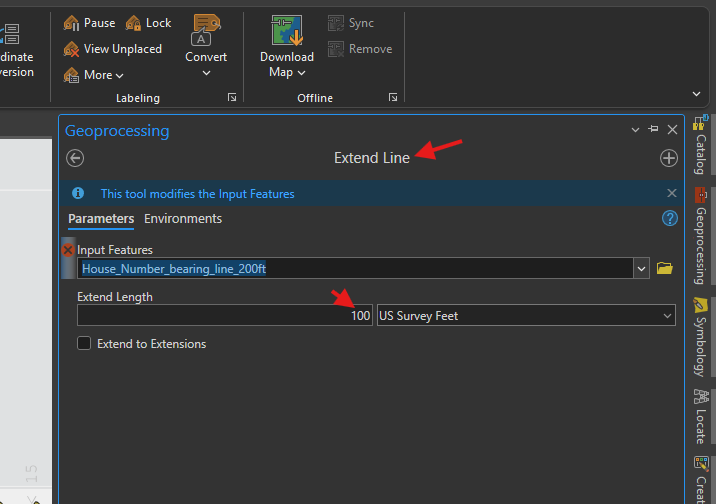

extend line not works.
Step 3.

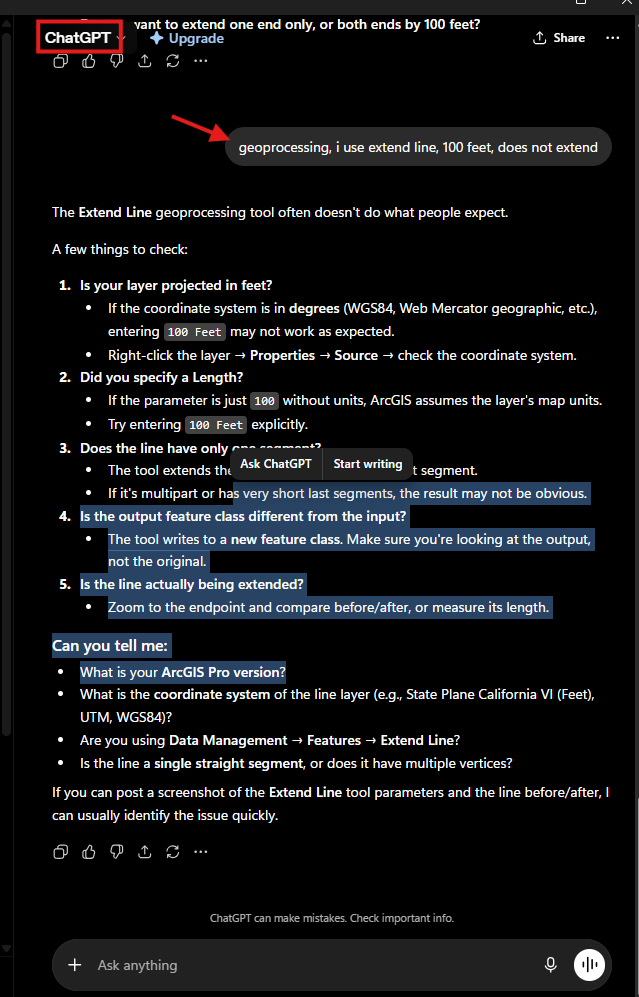

let AI works for you.
This time, AI did not work, all the options AI provide I had try, nothing works.
Step 4.
human brain start working by look around try to find some clue in Arcgis pro.

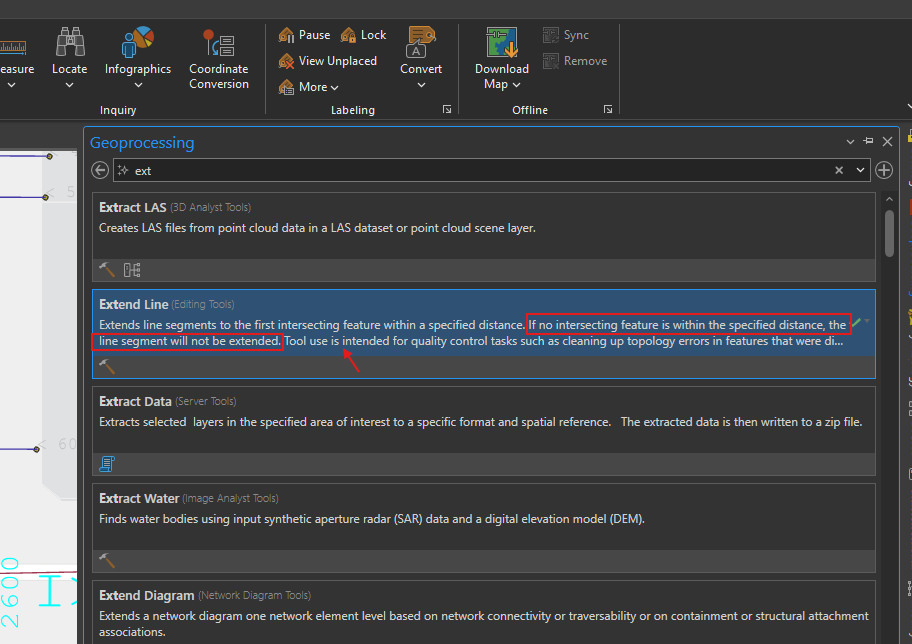

Found hint in this tool's description here.
This tool designed NOT work the way I want.
It works only on limited condition, red arrow. It design special for street line, extend to another street line.
so all street line are intersected,
If extended line would not intersect with another line, it would NOT extend (red box)
Previously AI try to find solution to let it work, it go to wrong direction. go to dead end.
This tool is not suppose to work that way.
Step 5.
work around is re-do bearing line with 200 feet.

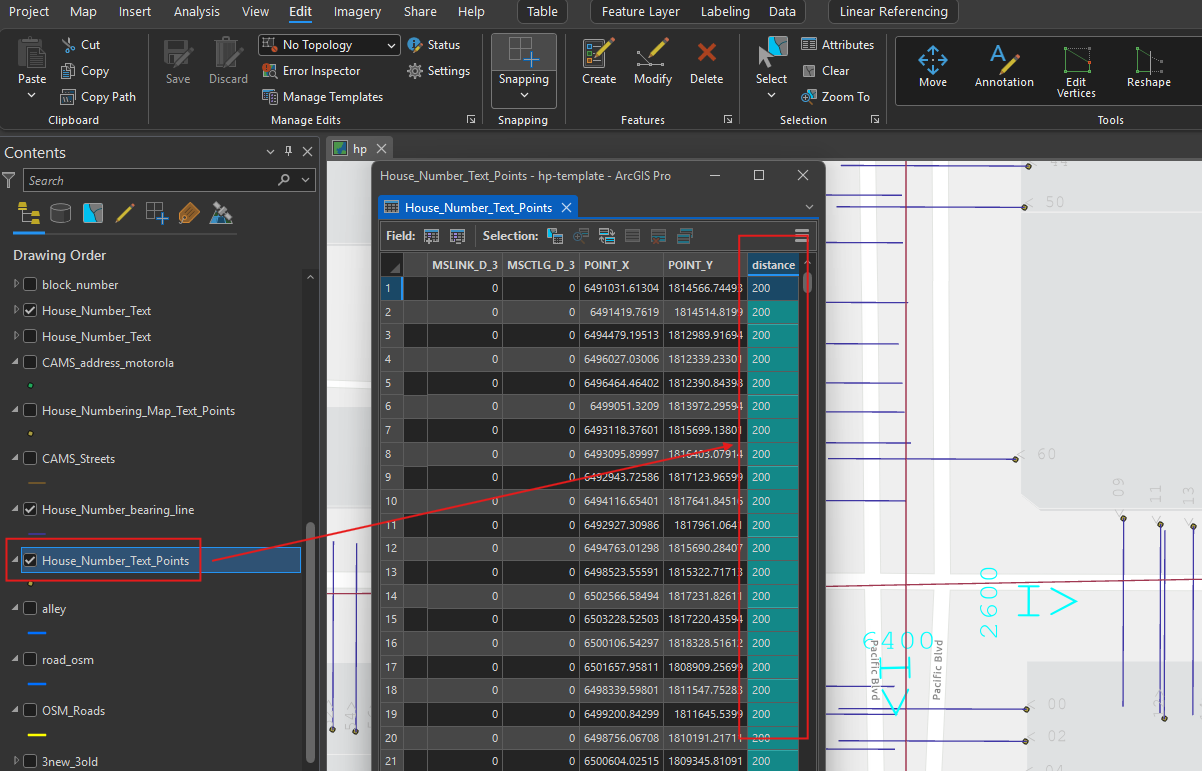

make sure distance field update from 100 feet to 200 on point
Step 6.

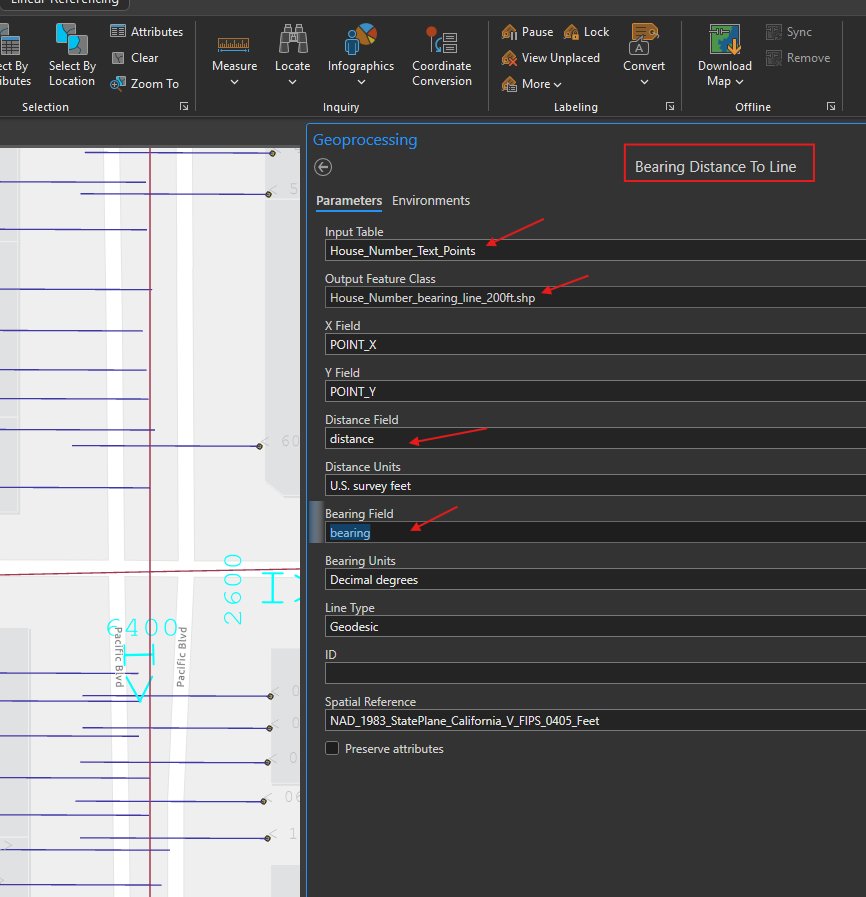

re-do bearing to line
Step 7.

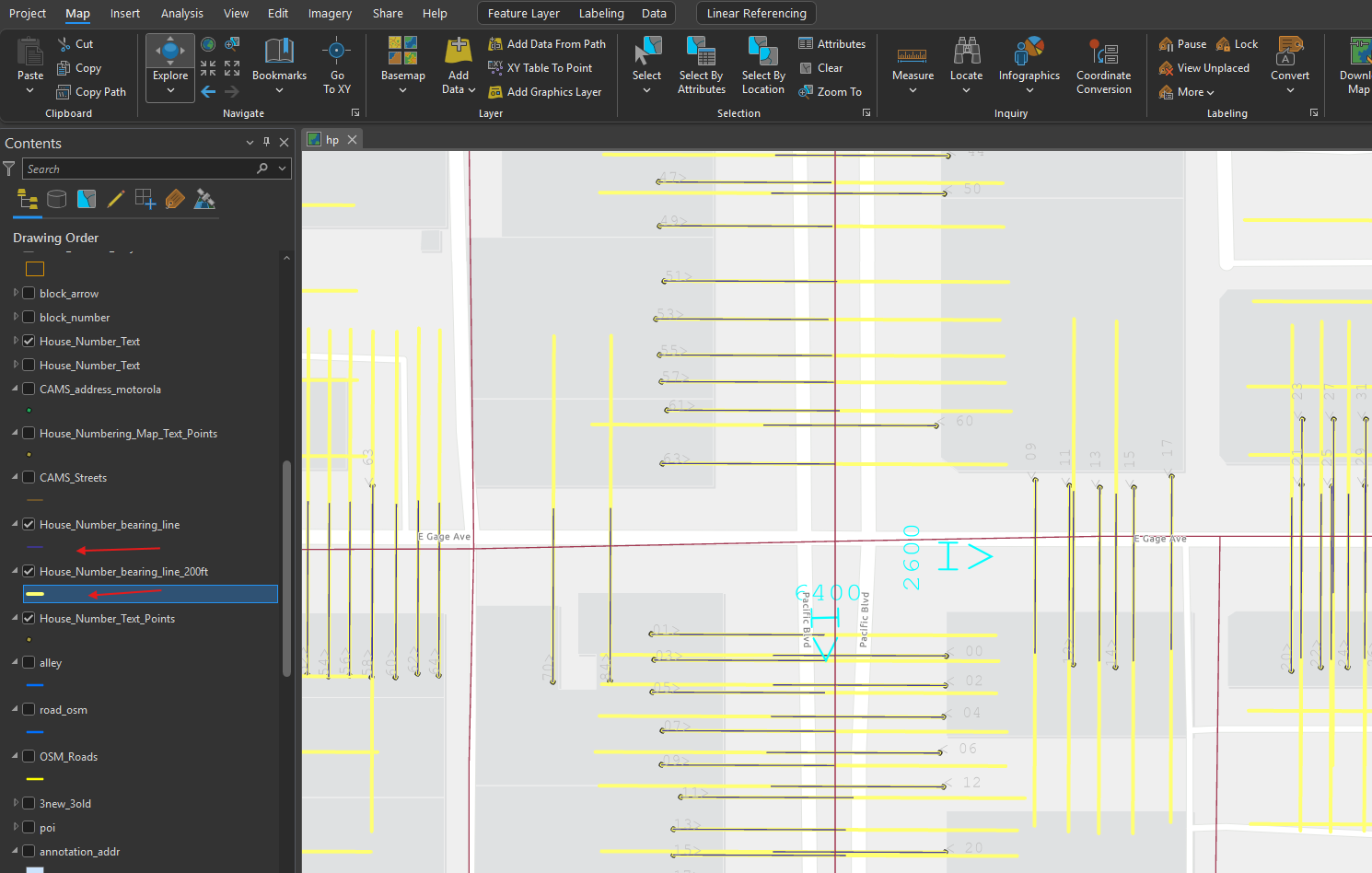

yellow is 200 feet extend line, should be 99% intersect with street line
original is 100 feet line, 95% intersect with street line, leave 5% too short.
