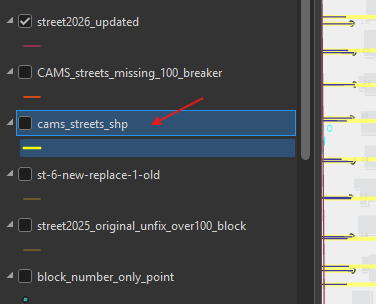

Step 1.
export county street from file geodatabase to shape file
( let long field name posttypeAbbr truncate to 10 char postTypeab)
since all down stream process all use shape file based field name ( max 10 char)
Step 2.

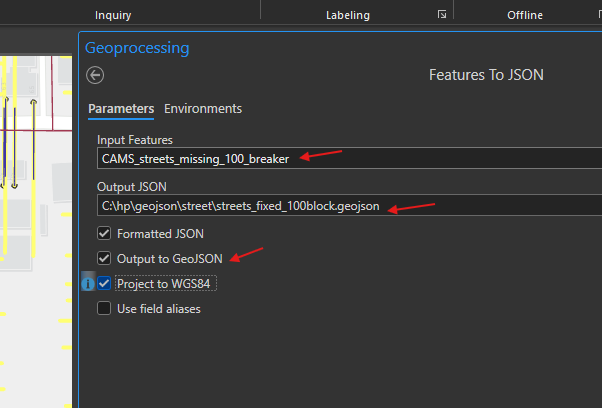

convert fixed 100 block to geojson format
Step 3.

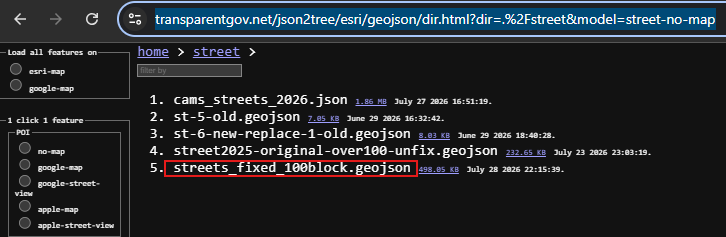

here is geojson file, click it to open
https://transparentgov.net/json2tree/esri/geojson/dir.html?dir=.%2Fstreet&model=street-no-map
Step 4.

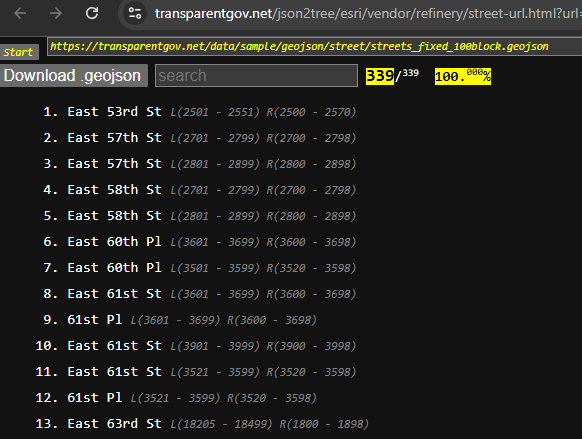

block fixed geojson file, this is only patch a small part of street, not whole street
https://transparentgov.net/json2tree/esri/vendor/refinery/street-url.html?url=https://transparentgov.net/data/sample/geojson/street/streets_fixed_100block.geojson
Step 5.

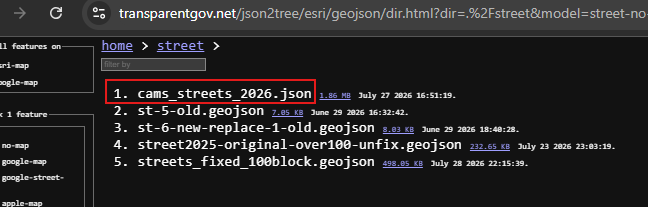

this is original county street, will need apply patch later
Step 6.
always load newer patch first, then load older data.
load small patch first, then original county street.
There are 2 options, if you have geojson on your hard drive,

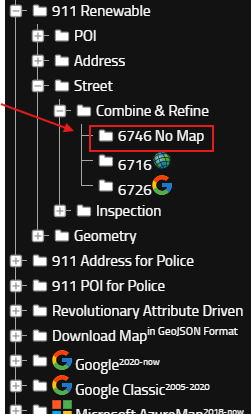

choose this model
Step 7.

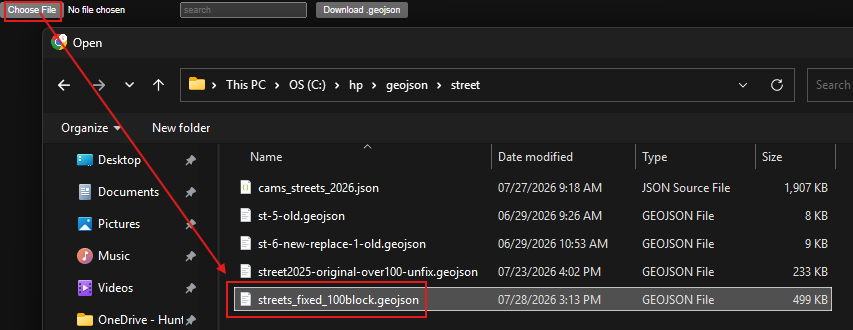

choose file, upload small patch first,
Step 8.

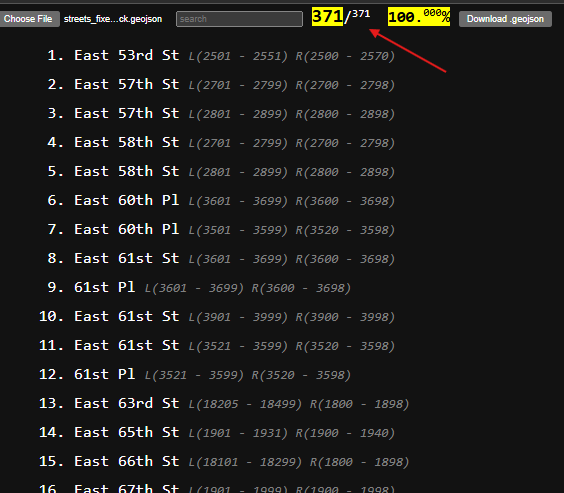

this is new patch, 371 total, then upload older file
Step 9.

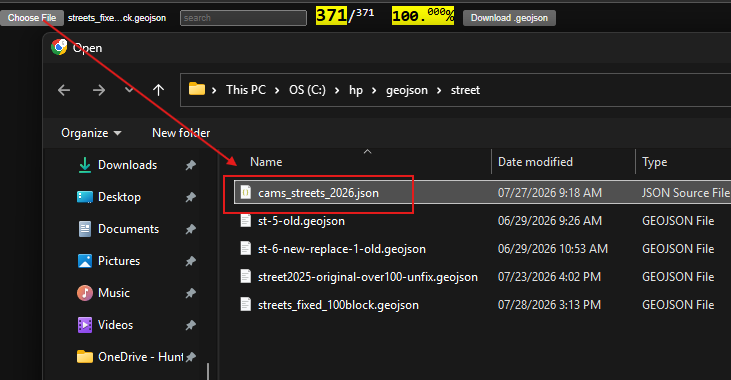

upload original un-fixed file
Step 10.

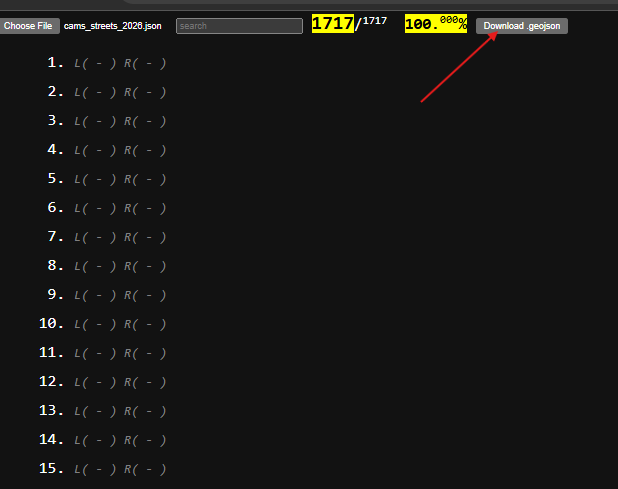

This is updated street, download it save as street_2026.geojson
Step 11.

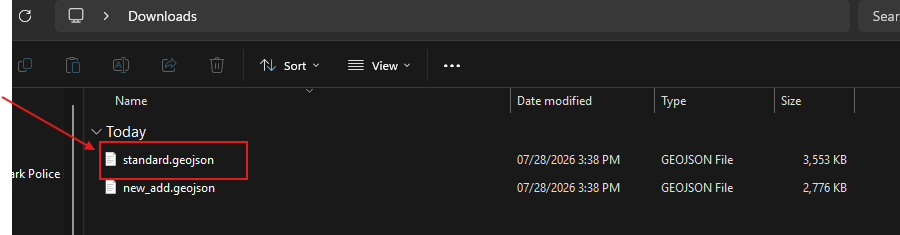

rename downloaded standard.geojson to street_2026.geojson
Step 12.

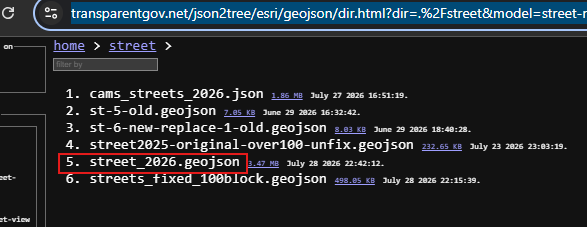

here is updated street 2026, click it,
https://transparentgov.net/json2tree/esri/geojson/dir.html?dir=.%2Fstreet&model=street-no-map
Step 13.

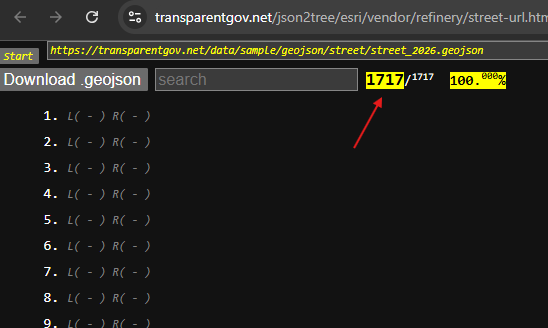

updated street have total 1717 segment
https://transparentgov.net/json2tree/esri/vendor/refinery/street-url.html?url=https://transparentgov.net/data/sample/geojson/street/street_2026.geojson
Step 14.

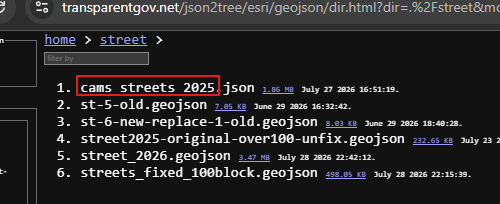

before update, original county street have 1446 segment
https://transparentgov.net/json2tree/esri/geojson/dir.html?dir=.%2Fstreet&model=street-no-map
Step 15.
original county street have 1446 segment
https://transparentgov.net/json2tree/esri/vendor/refinery/street-url.html?url=https://transparentgov.net/data/sample/geojson/street/cams_streets_2026.json
Step 16.

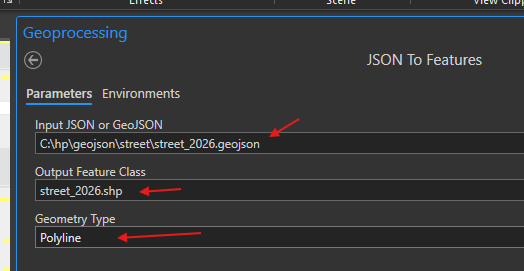

convert street 2026 from geojson back to shape file
Step 17.

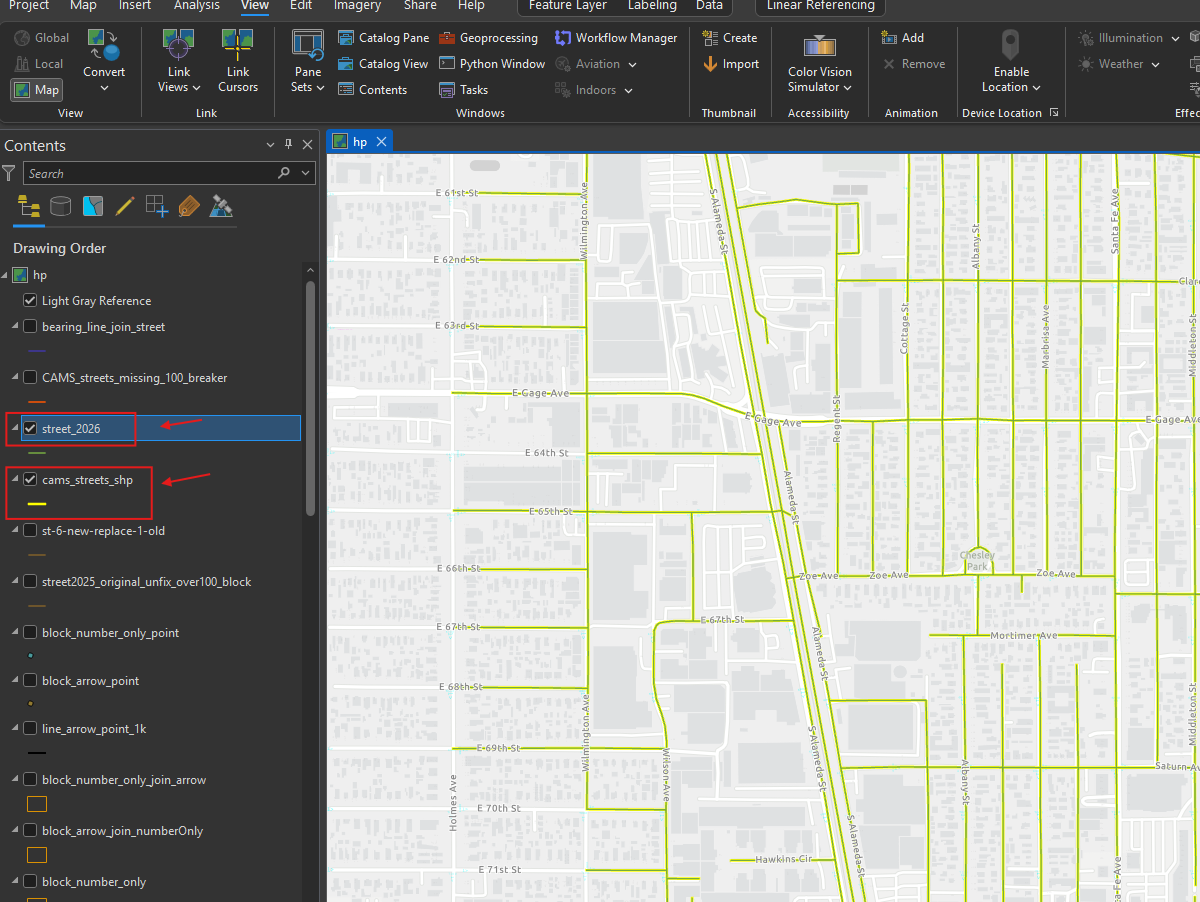

check result, bold yellow is original county segment,
red thin line is 2026 updated segment.
if found missing some street segment, only bold yellow line without thin red line,
it means the patch street range is not correct,
fix the patch range, repeat above steps again
