Step 1.

have several issue fixed in production environment, see here,

3 + 2 cross street test in production ( 911 locator)

Here is summary how to add these 2 function to production.

1. swap field, commonName ( common name + address )

2. swap field, streetname ( street name + 3 letter )

3. when copy paste to create a new locator, must change version from curent version to 3.0-3.3 ( otherwise, POI number search failed, publish to arcgis server v10.91 failed)

4. make sure use, address point physic layer, do not use variable layer (  to pick up swapped source content )

5. must uncheck categories ( street address, street midblock, street between ), otherwise, fake address will block POI address.

6. use address layer to replace POI layer as POI role, you need re-do field map.











Step 2.

 swap field, commonName ( common name + address )







Step 3.

swap field, streetname ( street name + 3 letter )

swap strNm3 content to streetName





















Step 4.

when copy paste to create a new locator, must change version from curent version to 3.0-3.3 ( otherwise, POI number search failed, publish to arcgis server v10.91 failed)

when copy paste, by default, ArcPro will use "current version", which is not works with v10.91.













Step 5.

 make sure use, address point physic layer, do not use variable layer (  to pick up swapped source content )

use address point physical layer instead of variable, see below. No need re-do field mapping.











Step 6.

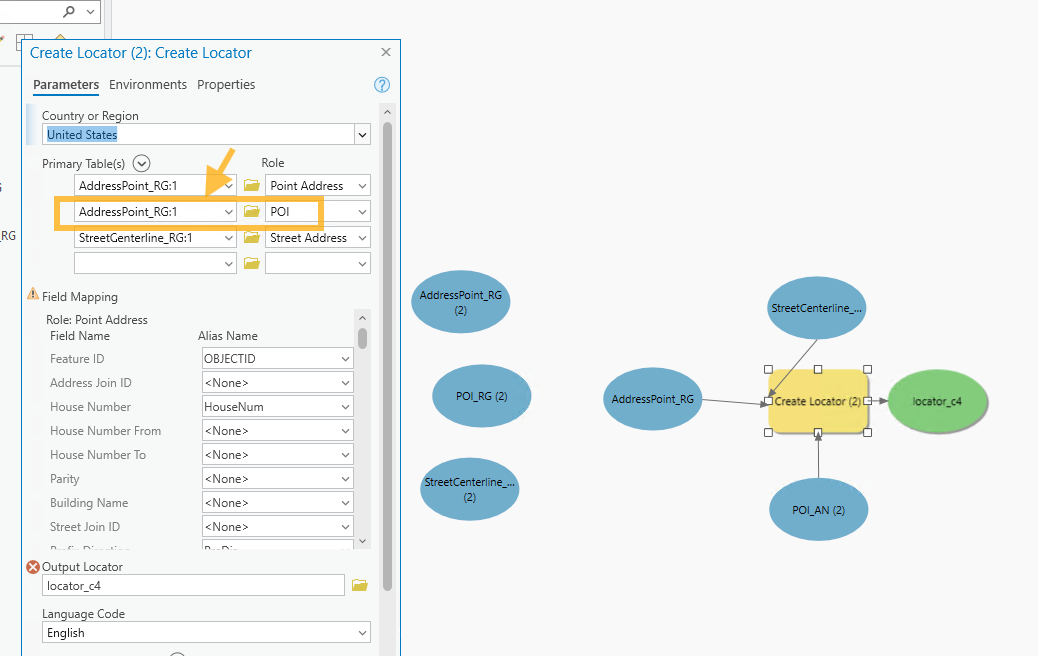

use address layer to replace POI layer as POI role, you need re-do field map.









Step 7.

must uncheck categories ( street address, street midblock, street between ), otherwise, fake address will block POI address.

must uncheck, street address, street midblock, street between,

otherwise, will generate lots of fake address, which block the real POI address, make is useless.











Step 8.

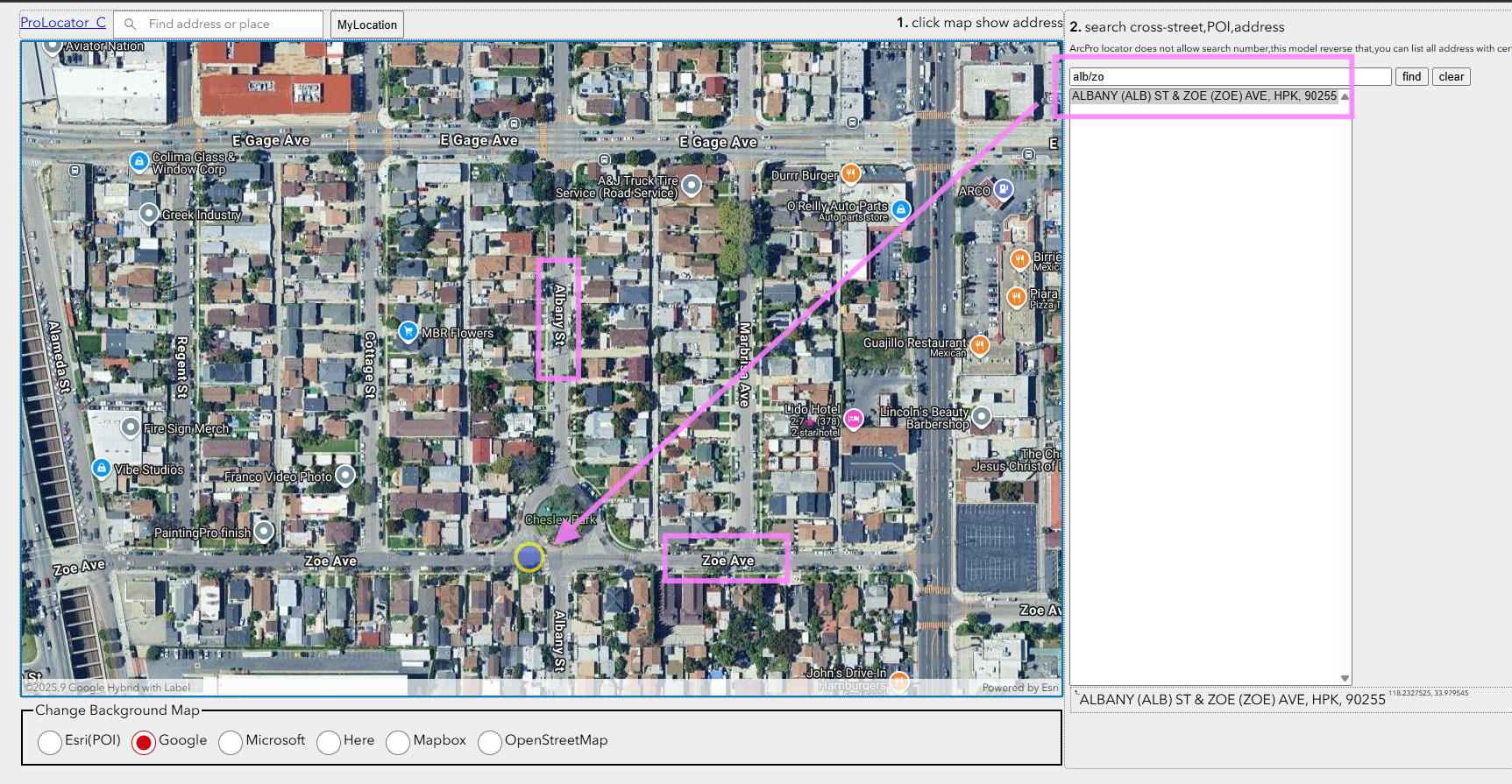

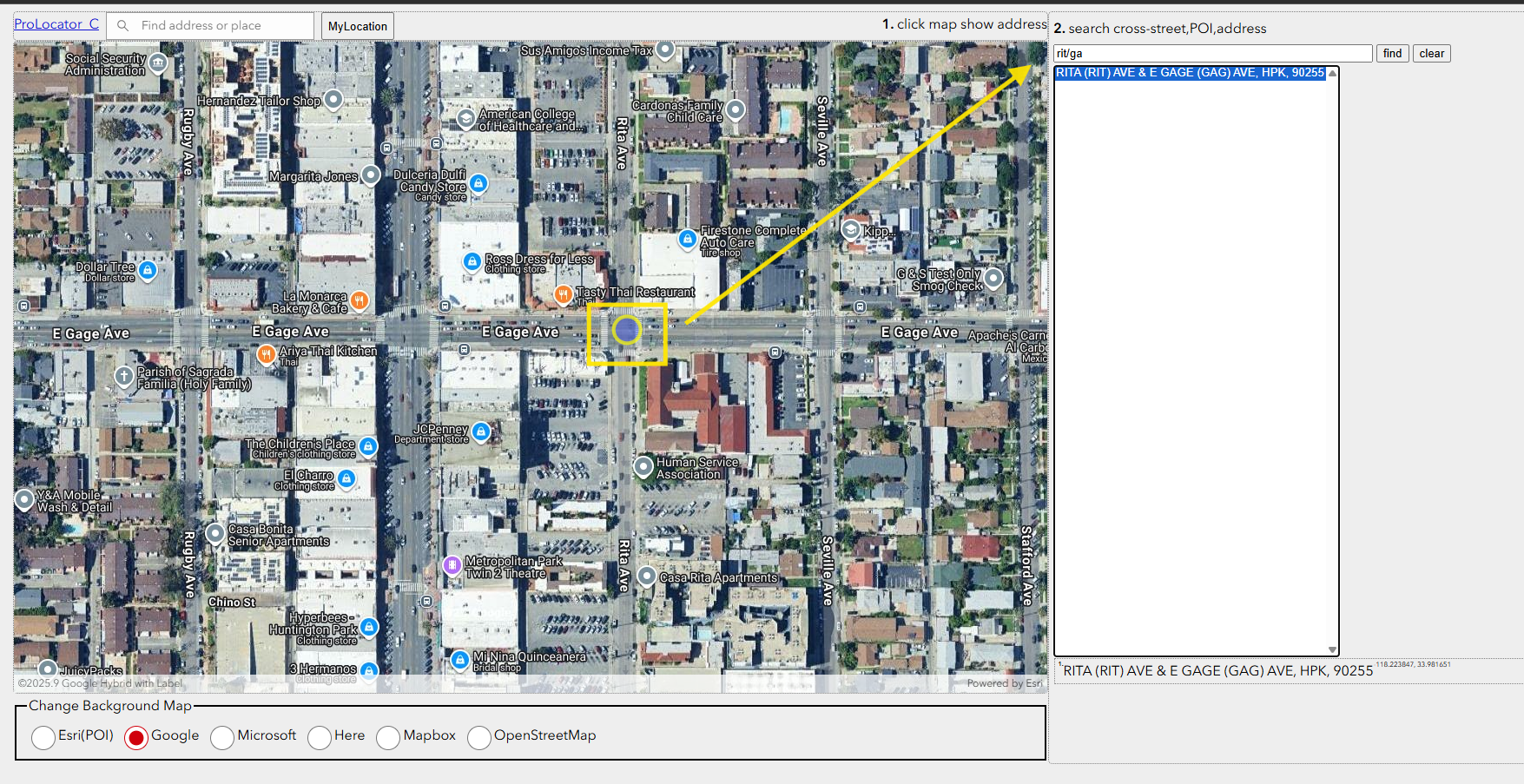

test, 3+2 letter, for cross street search, works.

if 3+2 works, how about 2+2 ? should works, until I test prove it work.









Step 9.

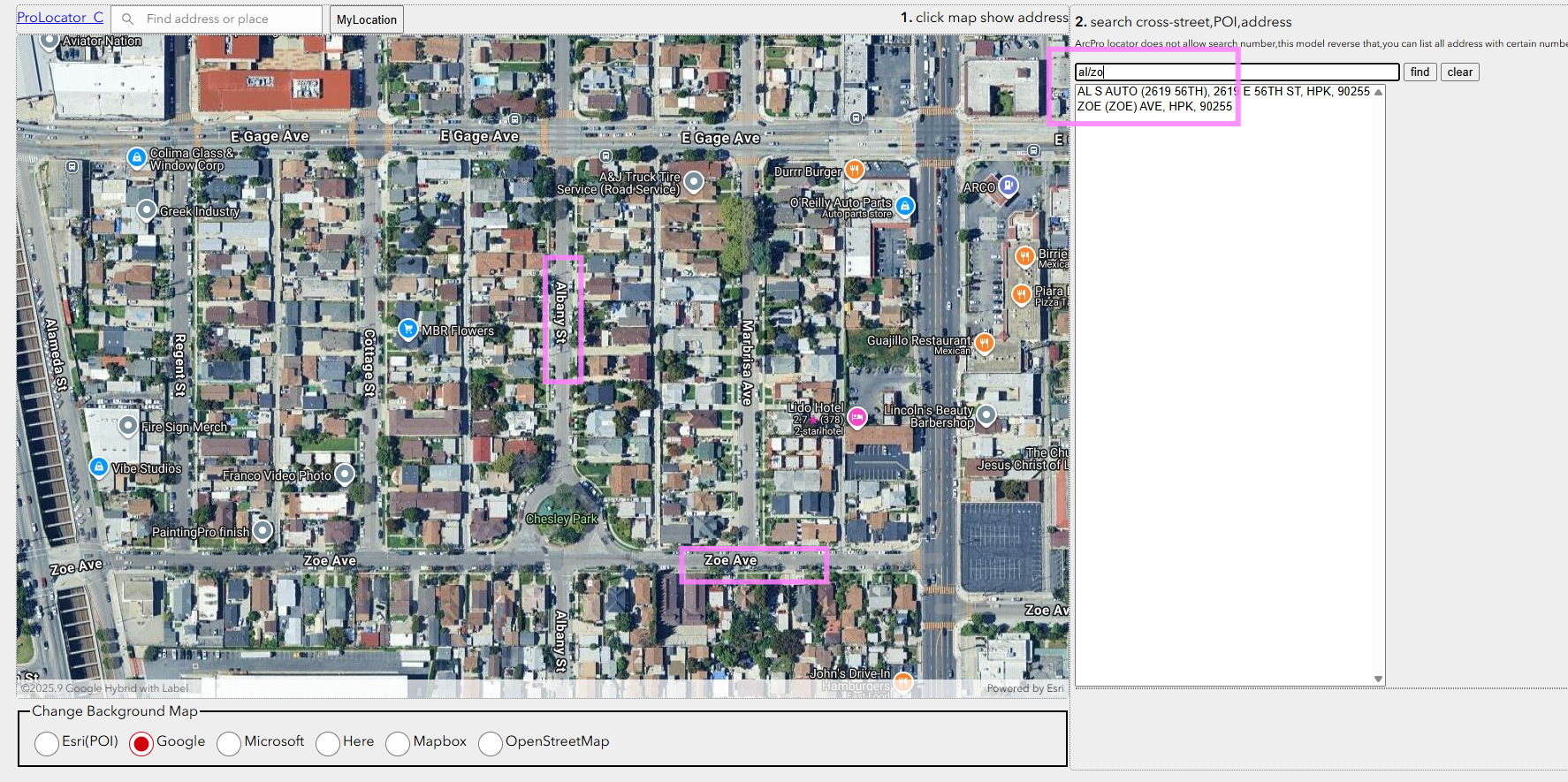

current setup, 2+2 letter for cross street, not work.  If I change source content to configure it as 2 letter street name, then it should work.















Step 10.

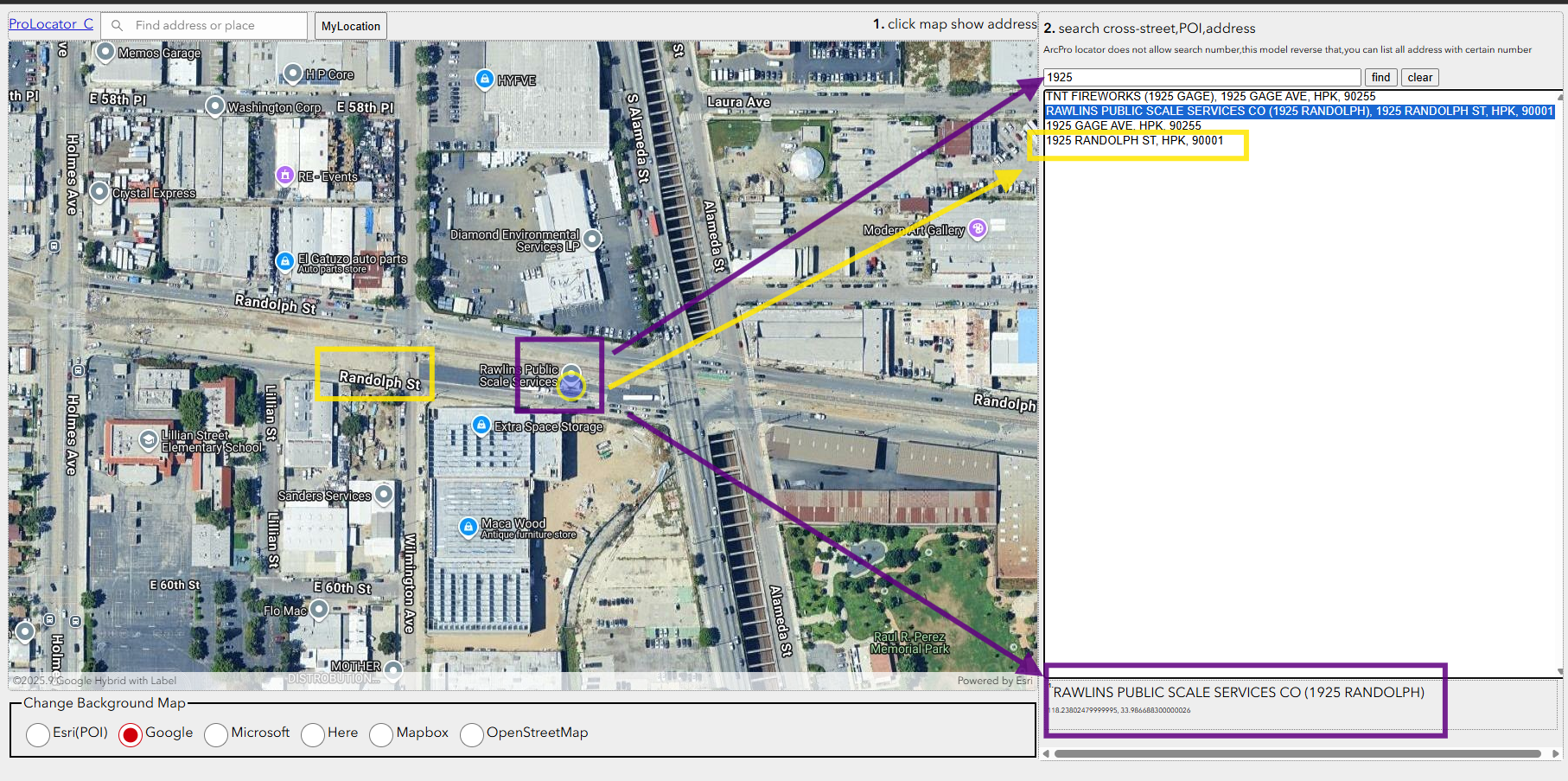

search number for    (POI business point) + address point( yellow box, arrow), works,







Step 11.

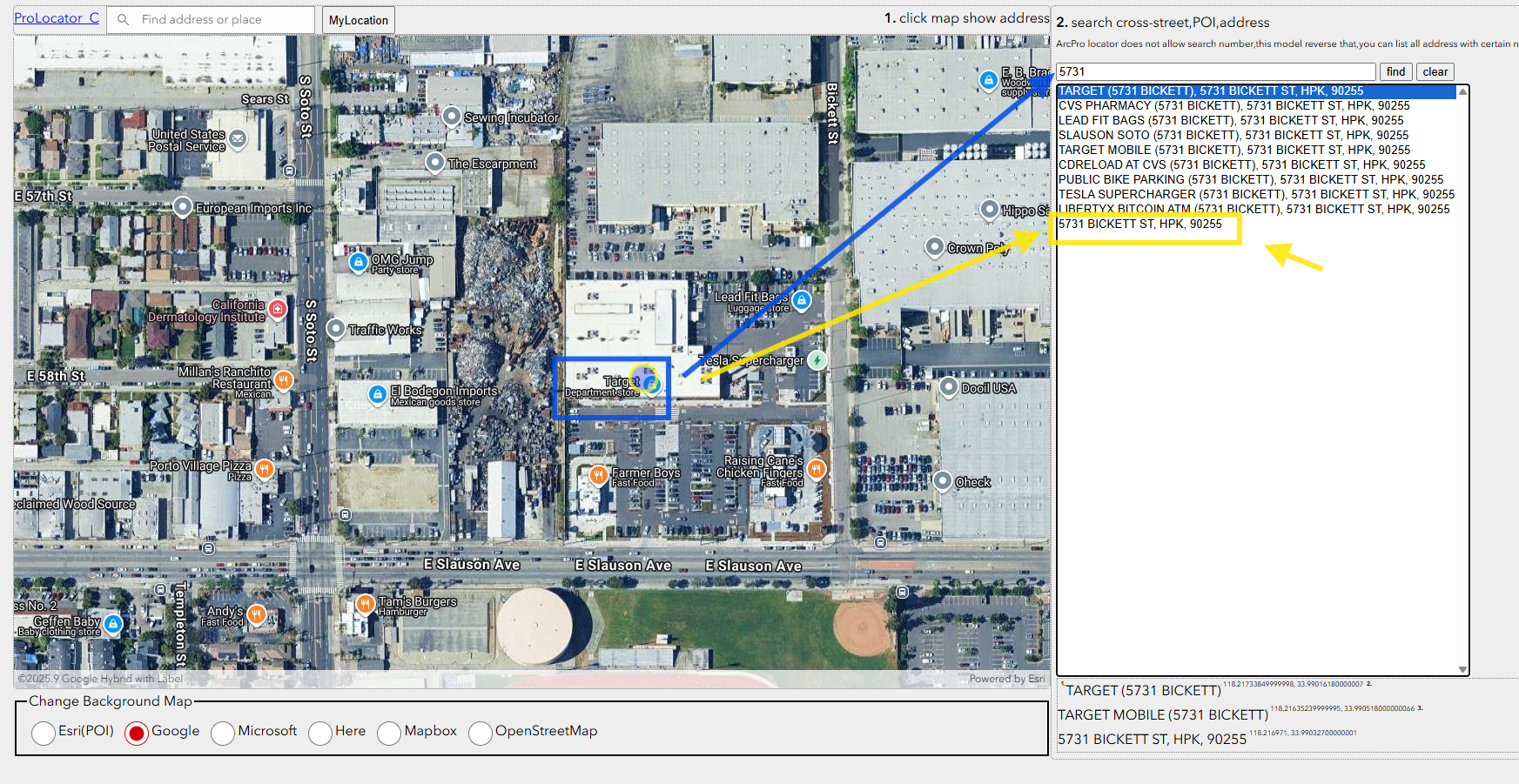

search number for    (POI business point) + address point( yellow box, arrow), works,





Step 12.

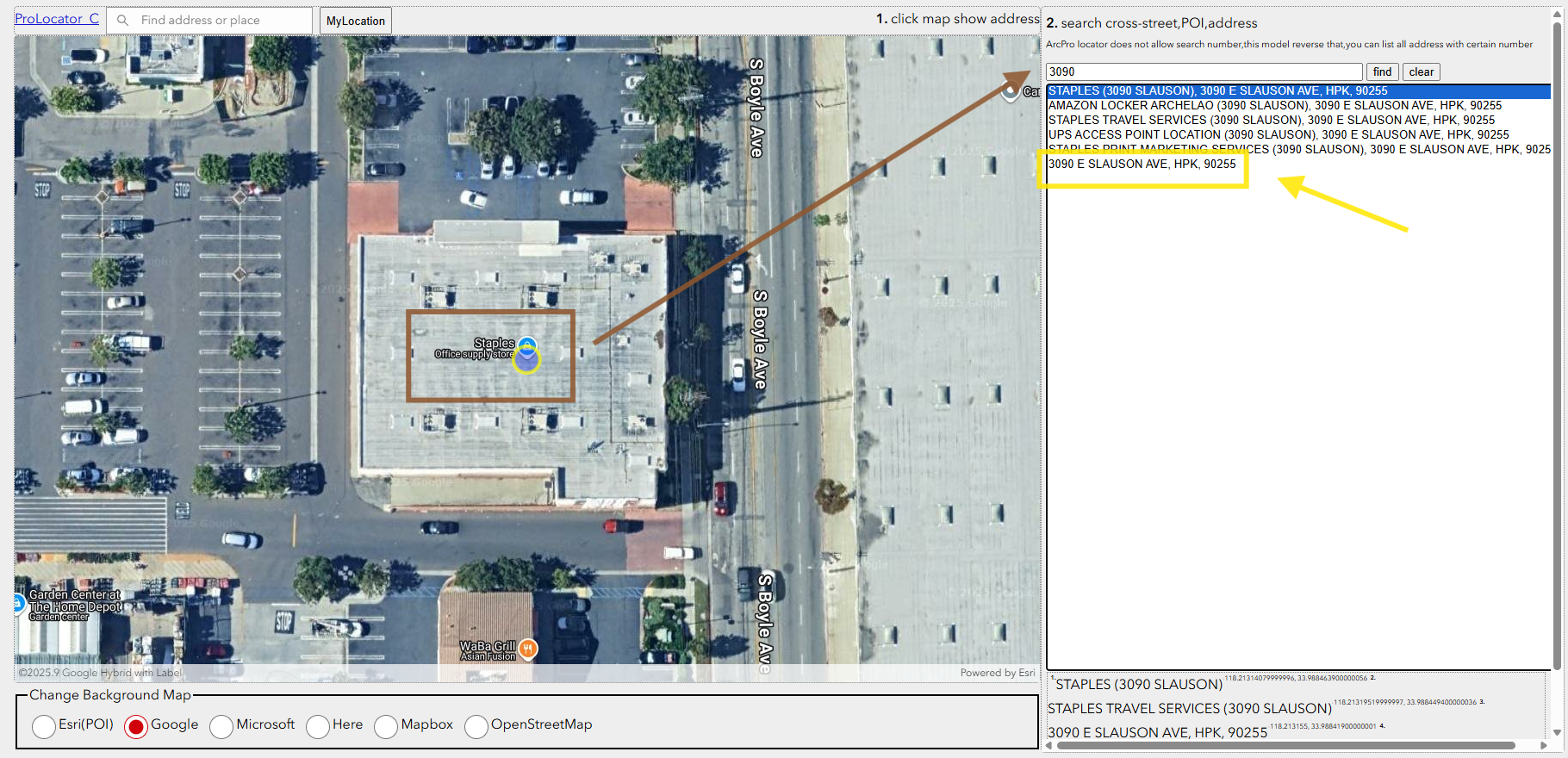

search number for    (POI business point) + address point( yellow box, arrow), works,





Step 13.

In theory, if you can do 3 + 2 letter for cross street,  you can do 2 + 2 letter.

For 911 dispatcher, less letter, means less typing, less is better, reduce work load daily.









Step 14.









Step 15.











Step 16.





Step 17.



Step 18.



Step 19.



Step 20.
